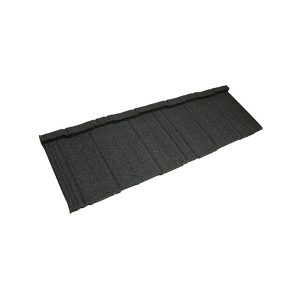

Metrotile Slate .900 Traditional Riven Profile Metal Roof Tile

Blending a traditional Slate aesthetic with unbeatable security, the Metrotile Slate .900 profile is a product that offers incredible value and superior performance to traditional slate roof products in every way.

Metrotile Lightweight Roofing’s Slate .900 tile profile offers the same great aesthetics as traditional slate roof tiles while offering superior benefits. The deep lines pressed into each ZAM coated steel profile results in increased shadow definition, resulting in a tile that looks virtually indistinguishable from traditional slate, while simultaneously offering unmatched vandal and weather resistance. Available in .900mm thickness for unsurpassed security and formed from high-quality Drawing Grade 3 steel, like all Metrotile profiles, Metrotile Slate .900 makes a perfect choice for a wide variety of roofing projects.

Dimensions

• Pitch:Minimum: 12° / Maximum: 90°
• Dimensions: Overall Size:1330mm x 370mm
• Cover Size: 1257mm x 370mm
• Gauge: .900mm
• Linear Cover Width: 1257mm
• Coverage: 0.46m² / 2.15 tiles per m²
• Weight per m²: 9.9Kg
• Weight per tile: 4.6Kg

How many Metrotile Bond Tiles are needed for a roof…

To work out how many you will need, simply calculate the square meterage of your roof by multiplying the length by the width in metres (L x W = M²), then multiply that square meterage using the guide above.

For example: if you have a 5 metre x 3 metre roof, then the equation would be 5 x 3 = 15 (meters squared), then 15 x 2.15 tiles (number of tiles per square meter required) = 32.25 rounded up to 33 (total number of tiles needed).*

*DISCLAIMER: This is just an estimated guide based on exact coverages advised by the manufacturer, and does not allow for wastage or cuts. The roofing industry standard for this is to allow an additional 5% to 10%, depending on the roof’s complexity and the skill/experience of the person installing the product, therefore, the final decision on quantity is the responsibility of our customer or the person installing the product.

Fixings

• Tile Fixing: 50 x 2.5mm Coated Nail. Hand nailing or power tool
• Fixings per tile: 4
• Battens Required: 5 linear metres per m² (plus wastage)
